Petrosmith is an industry leading producer of API 12F and API 650 shop-built oilfield storage tanks. With one of the largest tank production facilities in Texas, we can produce tanks with a size ranging from 100 BBL to 1200 BBL, including both tall (15’-6” x 30’) and squatty (21’-6”) 1000 BBL tanks, as well as taller sizes for up to 1200 bbl storage, as well as gunbarrel tanks. The facility is highly flexible, with an ability to offer custom built tanks conforming to our customer’s specifications, all at a highly competitive price and lead time.

Tank Types

Specifications

Stairway and Walkway

Tank Coating

Tank Types

TAnk Types

Oilfield Storage Tanks

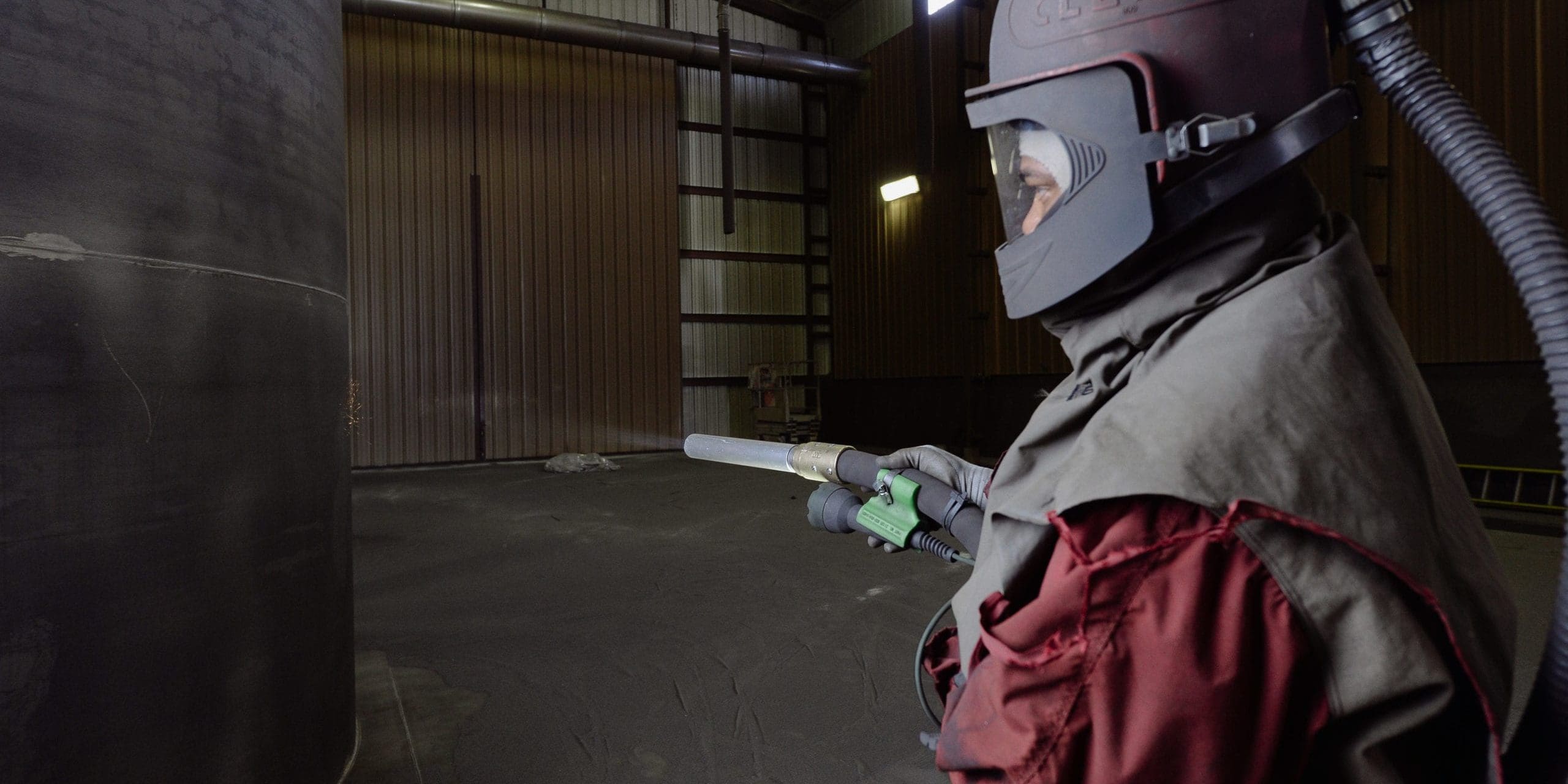

Petrosmith produces shop made oilfield storage tanks ranging in size from 100 BBL to 1200 BBL, and can produce both monogrammed and non-monogrammed tanks built in accordance to API 12F, either 12th or 13th edition varieties, as well as API 650 compliant shop-built tanks. All tanks are constructed from 3/16” and 1/4” A36 quality materials, and designed, constructed, and tested to API specifications. Petrosmith’s tank operation is completely integrated with all operations from tank fabrication to blasting, coating, painting and final assembly done in-house at our Abilene facility. Petrosmith has over 110,000 square feet of tank fabrication facilities, including over 40,000 square feet of blast, coating, and painting bays.

Gunbarrel Tanks

Gunbarrel tanks are an excellent choice for Tank Batteries when atmospheric pressure, gravitational force, and retention time are sufficient for the adequate separation of oil, water, and gas. Our Petrosmith standard design Gunbarrel tanks come with flume pipe assembly, spreader table, waterleg outlet with tie down brackets, API 5L threaded couplings (4” standard) and bolt-on gas chamber (flume pipe cap). We can provide our standard design Gunbarrel tank or we can customize our standard design to match your specific requirements.

Download Specs

Specifications

Specifications – API 12F

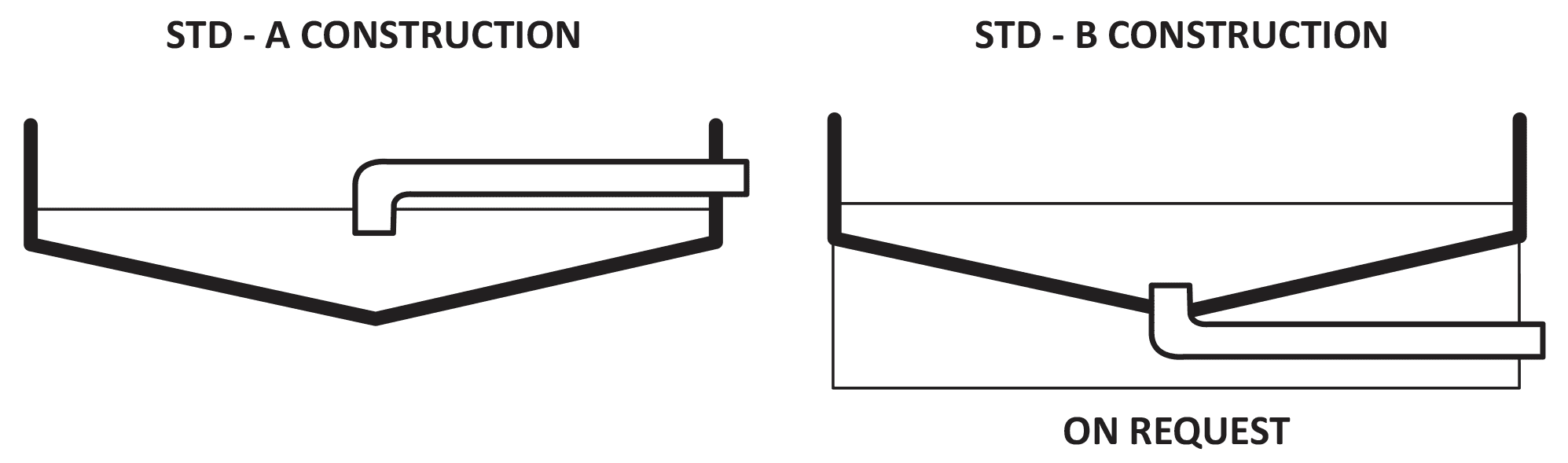

Petrosmith manufactures tanks ranging from 100 to 1000 barrels capacity, with either standard threaded couplings, or flanged connections as required. Customers can choose from flat bottom tanks, A-type, or B-type tank bottoms built to API 12F specifications. Tanks can be made to either 8 oz. or 16 oz. construction, depending on the customer’s requirement or preference.

Specifications – API 650

Petrosmith offers engineering design and construction of true API 650 compliant tanks. Engineered and constructed for the most demanding customers and applications, these tanks offer a higher design pressure rating up to 40 oz. (2.5 psig), and offer design features such as anchor chairs for proper mounting and anchoring, round 24” diameter manways, reinforcement “chime” rings, and all other design features required and in accordance with the API 650 specification. Please contact Petrosmith for your custom API 650 tank requirements and allow our team of engineering and fabrication professionals the chance to satisfy your needs.

Stairway and Walkway

On location, employee’s safety and access to every area is essential. Petrosmith’s walk and stair units stand up to the rigors of the field while giving workers access to vital equipment components.

Walkways and stairways are constructed from prefabricated components designed to be field erected alongside of tanks or similar structures. Petrosmith standard walkways consist of tread sections, railing assemblies, and toe boards so the completed structure will support a uniform load of 50lb/ft2 as specified in the API twelfth edition. Standard stairways are designed for field erection with a 26” minimum width capable of supporting 100lb per linear foot of tread width as specified in API 12F twelfth edition. Walk and stair can be provided in either galvanized finish (standard) or painted to match the tanks. Additionally, API 12F 13^th Edition stair and walk available upon request.

Tank Coating

Tank Coating

Petrosmith’s variety of coatings make it possible to prepare tanks of all sizes for virtually any application. These are high-quality, long-lasting coatings from premium trusted brand names like Sherwin Williams, International / AkzoNobel, PPG, Corchem, and others. The coatings are appropriate for use in the presence of salt water, petroleum products and other substances utilized in the production of fossil fuels.
